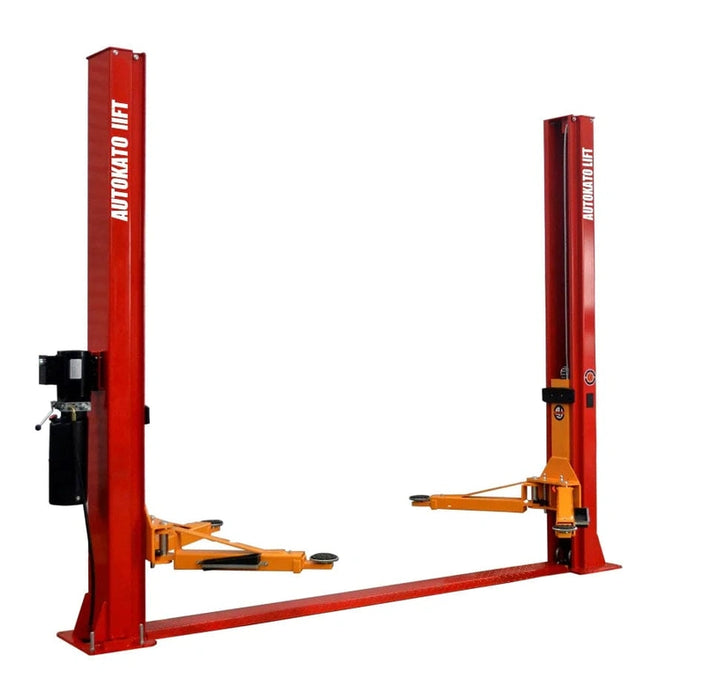

The Katool KT-H100 Two Post Vehicle Lift has a robust lifting capacity of 10,000lbs. CE Approved and Certified, it meets stringent safety standards, having undergone dynamic and static loading capacity tests. The lift features a manual safety release from two sides, a symmetric arm design, and a reliable base plate design. With dual hydraulic chain-drive cylinders, it ensures efficient and secure lifting. The rubber pad door opening protection adds an extra layer of safety. The lift comes complete with extension support adaptor sets of +30mm and +120mm, providing versatility for different vehicle types. The inclusion of feet-protection safety guardrails with a tools box enhances user safety. Powered by a top-level hydraulic system, it offers flexibility with optional 220V60HZ1PH and 110V60HZ1PH configurations.
*Concrete thickness must be at least 5.9 (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customers responsibility to verify concrete thickness and strength before purchase and installation.

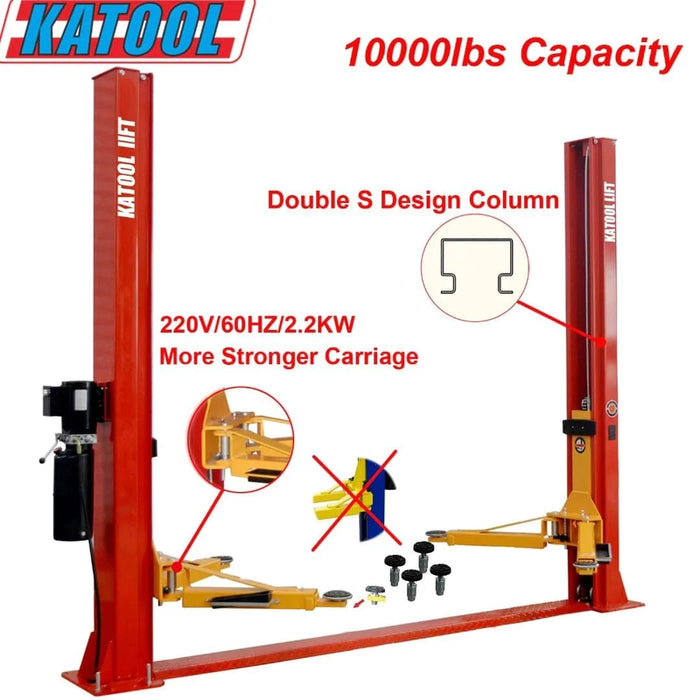

Features
10000lbs lifting capacity
CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

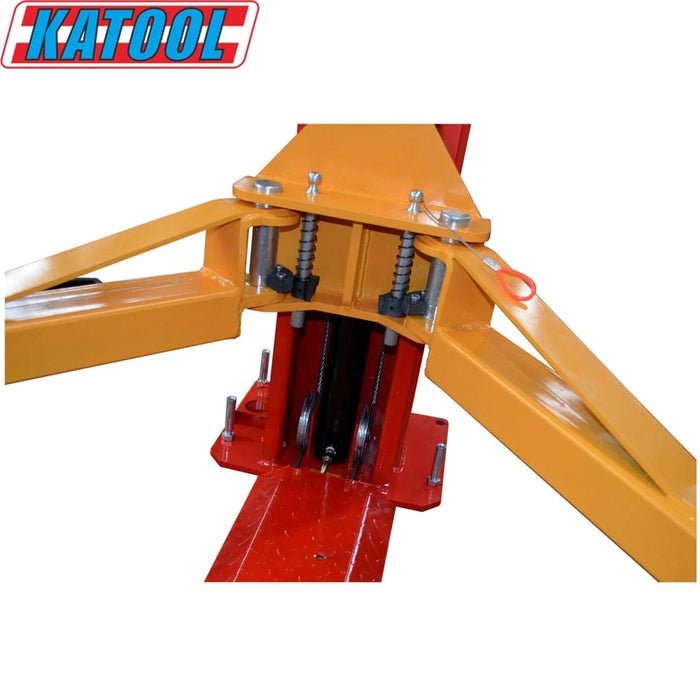

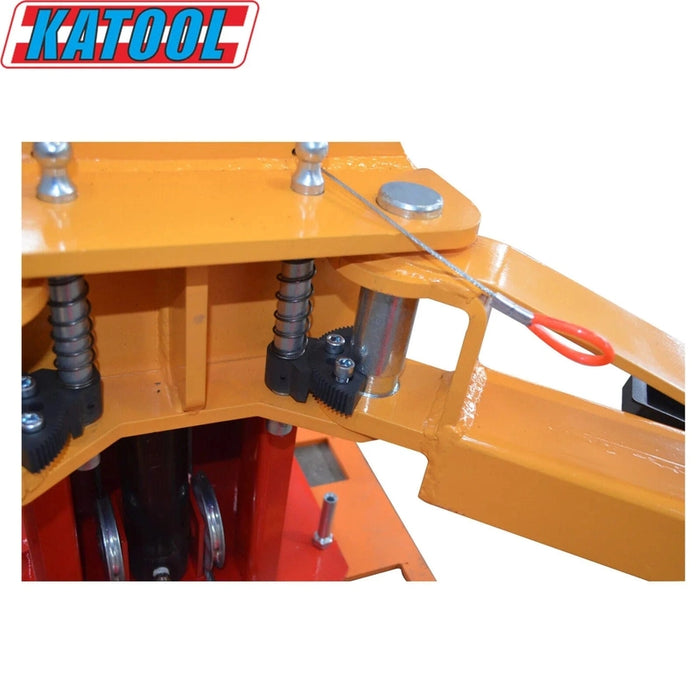

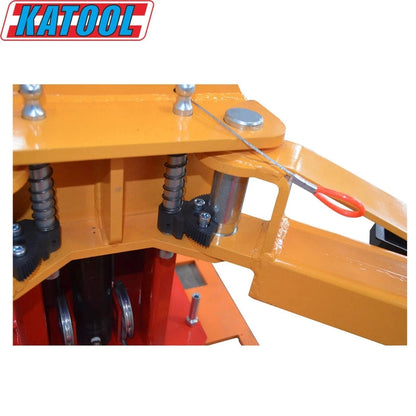

Manual safety release from two sides

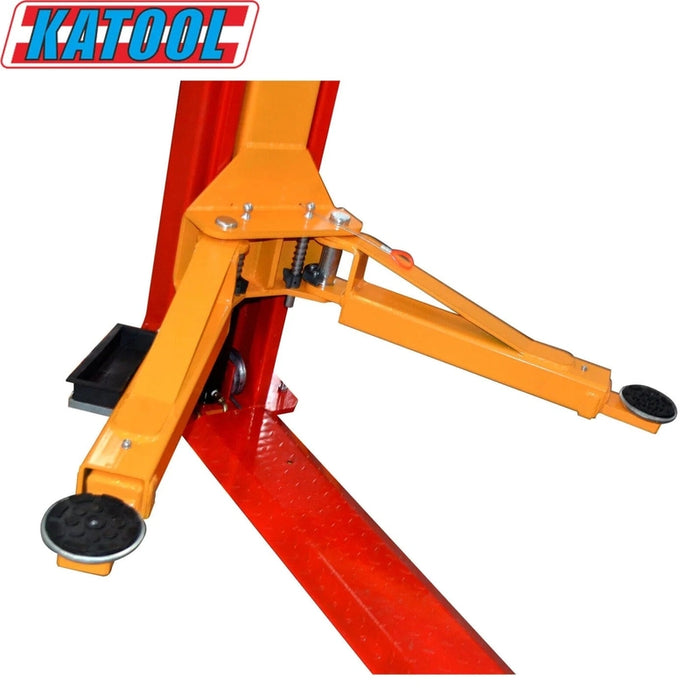

Symmetric arm
Base plate design
Dual Hydraulic Chain-Drive Cylinders
Rubber pad door opening protection
Comes with extension support adaptor sets of +30mm and +120mm
Feet-protection safety guardrails with tools box
Top-level hydraulic system with 220V60HZ1PH and 110V60HZ1PH (Optional)

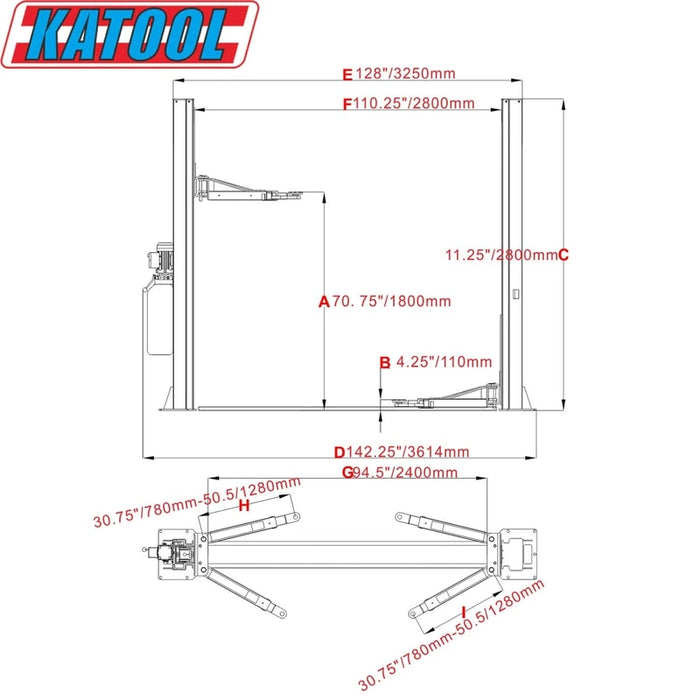

Specifications
Lifting Capacity
10000lbs4500KG
Max. Lifting Height
70.75"1800mm
Min. Height
4.25"110mm
Height Overall
110.25"2800mm
Width Overall
142.25"3614mm
Outside Column
128"3250mm
Inside Column
110.25"2800mm
Dirve-Thru Clearance
94.5"2400mm
Front Arm Reach (Min)
30.75"780mm (2 stages)
Front Arm Reach (Max)
50.5"1280mm (2 stages)
Rear Arm Reach (Min)
30.75"780mm (2 stages)
Rear Arm Reach (Max)
50.5"1280mm (2 stages)
Motor
220VAC60HZ1PH2.2KW
Net Weight
1256lbs570KG
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes - Cylinders, power units, motors, displays, electronics, etc. - Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions - Claims must fall within the warranty period. - Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor. - Replacement parts will be provided at no cost, including free shipping.
Note - All warranty claims are subject to approval by the warrantyservice department. - Photos andor videos of defects may be requested. - Do not disassemble any equipment before the issue is determined. - Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs. - Labor is not included in the warranty.
All of the products that theyoffer to clients are tried and tested within the industry and are proven to be the most reliable equipment on the market.
Resources
For more detailed information and guidance, you can download the following
Efficient and durable, the Katool KT-H100 Two Post Vehicle Lift offers 10,000lbs capacity. Shop now for a high-quality lift solution with free shipping.Efficient and durable, the Katool KT-H100 Two Post Vehicle Lift offers 10,000lbs capacity. Shop now for a high-quality lift solution with free shipping.
